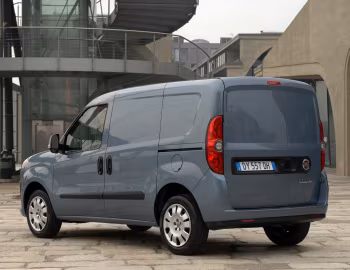

Fiat Doblò Cargo / Opel/Vauxhall Combo Cargo '2010–18

Specifications of Fiat Doblò Cargo / Opel/Vauxhall Combo Cargo '2010–18

Fiat Doblò Cargo Opel Combo Cargo L2H1 Vauxhall Combo Van ecoFLEX
2010–15 02.2012–03.2018 02.2012–03.2018
basic
steering wheel location at left at right
doors counts 5
number of places
total 2
design bearing body
geometry
dimensions
length 4,740 mm 4,390 mm
width 1,831 mm 1,832 mm
width, including mirrors 2,119 mm
height 1,880 mm 1,845 mm
wheel base 3,105 mm 2,755 mm
track
front 1,510 mm
rear 1,530 mm
weight
curb 1,300 kg 1,330 kg
full 2,200 kg 2,330 kg
engine
name 1.4L ecoFLEX B14FP/LJA (FIAT FIRE 843A1000) 1.6L CDTi ecoFLEX LJ5/A16FDH (FIAT Multijet)
type Piston
location at front, transversely
supply system injector
block material cast iron
cylinders/valves l4/4
cylinder diameter 72.0 mm 80.0 mm
stroke 84.00 mm 81.00 mm
volume 1,368 cc 1,598 cc
power
power 95 hp 105 hp
in the range from 6,000 rpm 4,500 rpm
in the range to 6,000 rpm 4,500 rpm
torque
torque 127 Nm 290 Nm
in the range from 4,500 rpm 1,500 rpm
in the range to 4,500 rpm 1,500 rpm
compression ratio 11.00 16.50
fuel petrol diesel
turbo none yes
cooling liquid
Gas distribution mechanism DOHC
transmission
drive unit front-wheel drive
gearbox Manual 5 (FIAT C514) Manual 6 (Fiat C635)
suspension and steering
front suspension
elastic element type coil spring
type guide vanes independent
shock absorbers
availability yes
anti-roll bar yes
rear suspension
elastic element type coil spring
type guide vanes independent double wishbone independent
shock absorbers
availability yes
anti-roll bar yes
steering type Реечное рулевое управление с гидроусилителем
electric
onboard voltage 12 V
dynamic properties
max speed 161.0 km/h 164.0 km/h
acceleration to 100 km/h 15.4 s 13.4 s
other specs
fuel tank capacity 60
boot volume 4,200 l 3,400–3,800 l
fuel consumption
EU 93/116/EC
urban 9.2 l/100km 6.2 l/100km
extra urban 5.7 l/100km 4.6 l/100km
combined 7.0 l/100km 5.2 l/100km
"start-stop" system yes
capacity 900 kg 1,000 kg
towing weight 1,000 kg 1,300 kg
spread
wall-to-wall 11.2 m
brake system
ABS yes
front brakes
type disc
diameter 305 mm
material metal
ventilated yes
rear brakes
type drum
diameter 228 mm
material metal
emissions 163 CO2 g/km 137 CO2 g/km
emission standard Euro 6 Euro 5
wheels and tyres
rims material steel
front
?J × 16
195/60 R16		 ?J × 16
185/65 R16
rear
?J × 16
195/60 R16		 ?J × 16
185/65 R16
production place Бурса (Турция)
