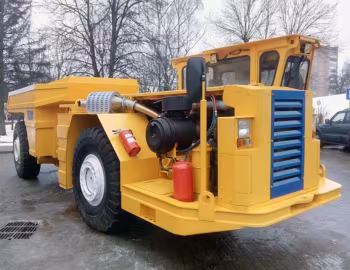

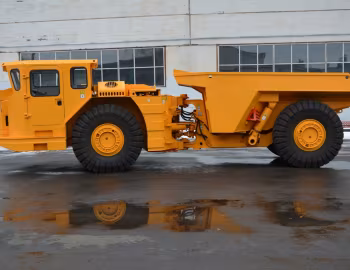

Underground mine trucks

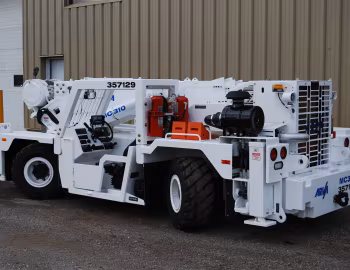

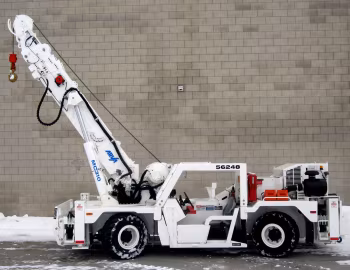

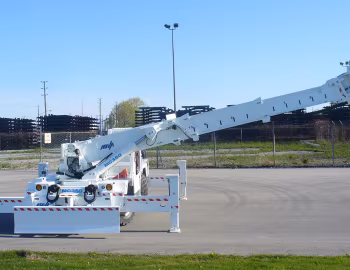

15 Ton (13.6 Tonne) Low Profile Mining Crane.

Low profile mobile crane with 278° rotation and 3-section, full power hydraulic boom with -5° to +55° elevation

• Options for 24″ or 42″ boom extension, 42″ hydraulic luffing jib, 42″ rhino jib, 96″ rhino jib, work platform or 30,000 lbs. capacity swivel lug attachment;
• ROPS/FOPS certified carrier;
• QSB 4.5 130 hp diesel engine;
• 6 speed forward/3 reverse power-shift transmission;
• 2-wheel front, 4-wheel coordinated, 4-wheel crab steering;
• Hydraulically-powered hoist allows for a 24,500 lb. single line pull on first layer of rope;
• Anti-two block and overload protection;
• 15 ton hook;
• CAN Bus electrical system;
• Optional rated capacity indicator (RCI).

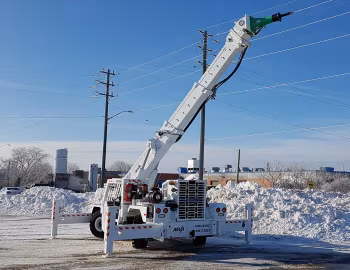

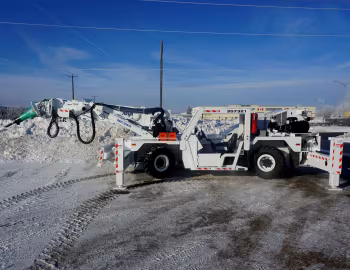

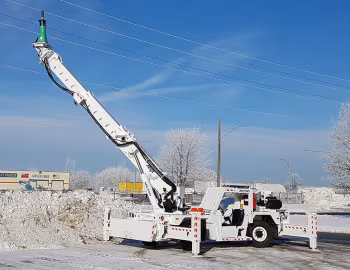

Low Profile Mining Scaler.

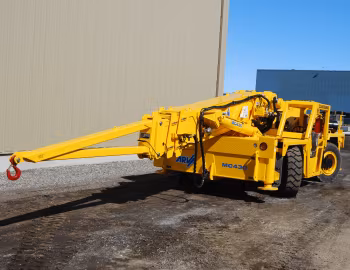

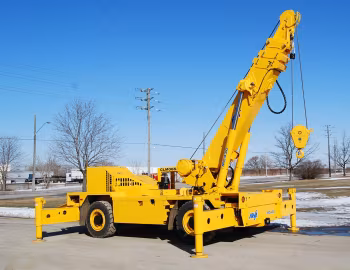

20-Ton (18.1 Tonne) Mining Crane.

Low profile mobile crane with 278° rotation and 3-section, full power hydraulic boom with -10° to +55° elevation.

• Options for 42″ hydraulic luffing jib, 42″ rhino jib or 40,000 lbs. capacity swivel lug attachment;
• ROPS/FOPS certified carrier;
• QSB 4.5C 160 hp diesel engine;
• 4 speed forward and reverse power-shift transmission;
• 4-wheel steering with manual rear steering control;
• Hydraulically-powered hoist allows for a 24,500 lbs. single line pull on first layer of rope;
• Anti-two block;
• 24″ sheave end with quick attach connection;
• Hard-wired load moment indicator;
• CAN Bus electrical system;
• Optional rated capacity indicator (RCI).

Mining Platform.

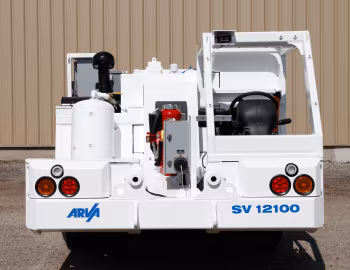

The "Lube Truck" is a mobile, diesel-powered service vehicle with optional lubricant tanks and transfer pumps.

• Optional hydraulically or pneumatically-driven lube kit with separate lubricant tanks and transfer pumps;
• External 600 V ac electrical system powering pumps and air compressor;
• 1 or 2 ROPS certified Operator’s cab(s);
• QSB 3.3 99 hp Tier III diesel engine;
• 6 speed forward / 3 reverse mid-drop transmission;
• 2-wheel front, 4-wheel coordinated, 4-wheel crab steering;
• Full air ride suspension with +/-3″ of travel;
• 24 gpm variable displacement gear pump;
• SV12100 and SV12101 feature dual front and rear facing cabs;
• SV12105 features dual front facing cabs.

The "Water Truck" is a mobile, diesel-powered service vehicle with a 2000 US gallon water tank and hydraulically-driven water spray pump.

• Deck-mounted 1000 or 2000 US gallon capacity water tank;
• Hydraulically-driven water spray pump;
• Optional nozzle/spray configurations up to 100″ spray patterns;
• ROPS certified Operator’s cab;
• QSB 3.3 99 hp Tier III diesel engine;
• 6 speed forward/3 reverse mid-drop transmission;
• 2-wheel front, 4-wheel coordinated, 4-wheel crab steering;
• Full air ride suspension with +/-3″ of travel;
• 25 gpm variable displacement pump.

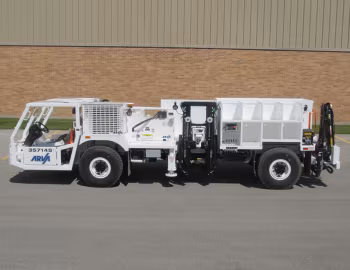

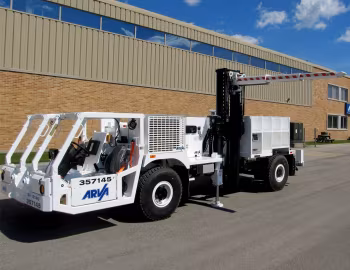

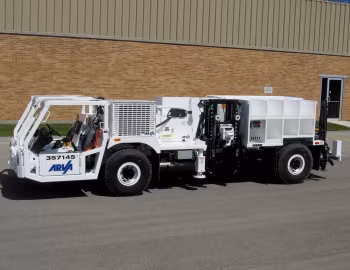

The "Belt Truck" is a mobile, diesel-powered service vehicle with a conveyor belt service kit, which allows for conveyor belt rollers to be changed safely and efficiently.

• Conveyor belt kit includes a positive locking mast, mast tilt and extendable probe;
• Probe can be raised or lowered, and extended to lift and hold a conveyor belt up to 2,500 lbs. @96″ centre-to-centre;
• 2 stage positive locking mast with 83″ of travel, mast tilt of 20°;
• 3-section telescoping lift probe with 87″ reach;
• Side-mounted stabilizer for maximum capacity and safety;
• ROPS certified Operator’s cab;
• QSB 3.3 99 hp Tier III diesel engine;
• 6 speed forward/3 reverse mid-drop transmission;
• 2-wheel front, 4-wheel coordinated, 4-wheel crab steering;
• Full air ride suspension with +/-3″ of travel;
• 24 gpm variable displacement pump;
• Optional Scissor lift platform with guard rails and side access ladder – platform height 120″, 44″ extension.
